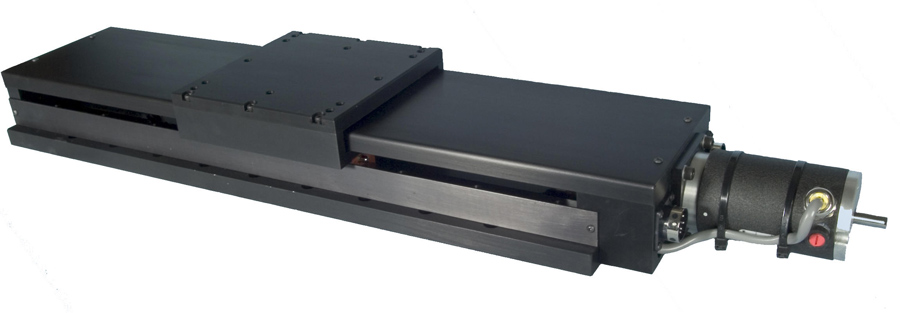

Using rail bearings and ground ballscrews, the 2500 series offers good load bearing capability, long travel with high accuracy and economy. Travel ranges of up to 500mm as standard make the 2500 series exceptionally versatile whilst the hard top cover provides protection for the stage and other equipment.

Adjustable magnetic limit and datum switches are integral within the stage.

Stepper or servo motors are compatible with 2500 series stage.

Travel (mm)	100	150	200	250	300	350	400	450
Standard Ballscrew	G0, precision ground, 2mm pitch
Flatness and straightness of travel	+/- 2μm per 25mm travel
Bi-directional repeatability	+/- 2μm
Load capacity (kg)
Stage horizontal	75	75	75	75	75	75	75	75
Stage vertical	35	35	35	35	35	35	35	35
Weight (kg)	3	4	6	7	9	11	13	15
Materials	Aluminium alloy and stainless steel
Download a full specification including dimensions (.PDF)



Options

• Various ballscrew and Leadscrew pitches avaliable
• Foldback motors
• Travels in excess of 500 mm
• Ballscrew brake
